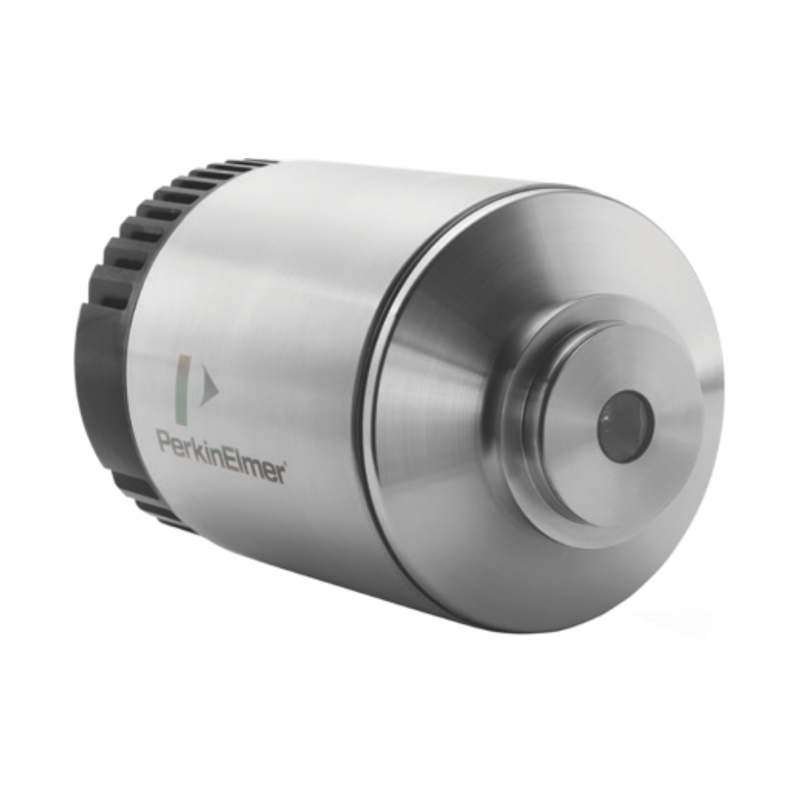

DA 7350 In-line NIR & Camera Instrument

What is DA 7350 In-Line NIR Sensor?

The DA 7350 In-Line NIR Sensor is an effective solution for continuous, simultaneous parameter measurement. It enables automated process control and aids global companies in enhancing their processes to achieve better consistency and quality in their products, while minimizing waste and rework. DA 7350 is capable of measuring moisture, protein, fat, oil, ash, and more.

What Can You Analyze?

Our advanced instruments are expertly made to help you accurately analyze the properties of grains, granules, pellets, flours, meals, powders, pastes, syrups, flakes, liquids and more.

Where Can You Analyze?

Flour Milling, Starch production and Corn Milling, Oilseed Processing, Dairy Processing

Analysis Time

Less than 20 spectra and measurements per seconds.

Measurement Principle:

NIR, Digital color camera

Measuring Parameters

Moisture, protein, fat, oil, ash, starch, sugar, speck count, Color in the CIE L*, a*, b* color space etc.

Download Brochure

Features

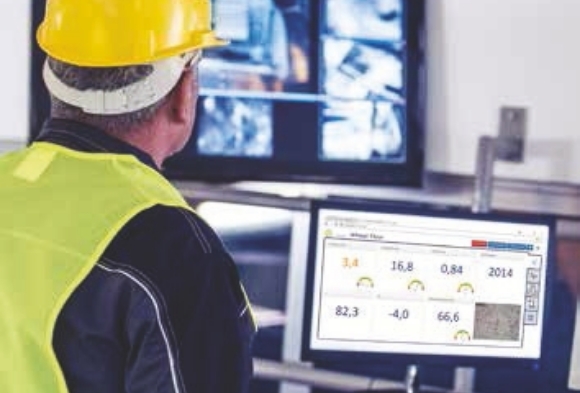

Real Time Measurements

The DA 7350 In-Line NIR Sensor is designed to simplify the manufacturing process, providing accurate and real-time measurements that let users control, optimize and reduce re-work. The continuous monitoring capability of the DA 7350 In-Line NIR Sensor ensures complete quality records of the entire production batch or run. Thus, leading to an increase in yield and consistency of the end product.

Integrated Camera

The integrated camera provides dedicated lighting, resulting in superior repeatability and improved alignment with laboratory methods. The standard color measurement in the CIE LAB space provides values for L*, a*, and b*.

System Compatibility

The DA 7350 In-Line NIR Sensor is designed to be compatible with existing plant control systems and supports a range of interfaces such as OPC UA, PROFINET, Modbus TCP, and fieldbus. It allows for easy integration of measurement results into standard batch reports and continuous data archiving, making it an ideal tool for audits, tracking, and tracing.

Technical Specifications

Included calibrations

Feature	Specification
Power Requirement	24 V DC, 5 A
Dimensions (HWD*)	313.5 * Φ 192 mm, 12.34 * Φ 7.56 In.
Net Weight	9.27 kg (22 lbs.)
Operating Temperature Range	-10 to 45 C, extended temperature range upon request
Ingress Protection	IP67 and IP69K
Measurements	NIR, Digital Color Camera
Speed of measurement	>20 spectra and measurements per second
Prodcuts	Grains, meals, flour, pastes, Pellets, extruded products, etc.
Parameters	Moisure, Protein, fat/oil, ash, starch, sugar count, Color in th CIE L, a, b*
Approvals	ATEX & IECx Zones 22 and 21 protentially dudt explosive atmospheres
Communication	UPC UA, PROFINET, ModbusTCP, Profibus DP, Modbus ASCII, Analogue outputs, SQL Queries and more
Data Storage	128 GB of Solid State Primary Storage

Easy Steps For Effortless Results

Solutions For Seamless Business Operations

At Everest Instruments, our services do not end with a sale or a purchase. It is only the beginning of a journey of trust and continuity, ensuring your business operations are safeguarded throughout. Our cutting-edge devices simplify the entire food and beverage industry process. Explore our range of cost-efficient and automated instruments that are compact, lightweight and designed to improve overall product quality.

Download Brochure

Testimonials

Frequently Asked Questions

What are the key features of the DA 7350 NIR and camera instrument?

It is an advanced, modern, and versatile in-line NIR instrument for over-the-belt type measurements.
It performs real-time multi-constituent measurements of a product on a processing line providing information for process control and quality monitoring.
It has a fast measurement time of 1 second.
It is easy to use and can be operated by untrained personnel.
It is compliant with the latest standards and regulations.

What are the benefits of using the DA 7350 NIR and camera instrument?

It can be used to quickly and accurately test a wide range of products in real time.
It can help to improve the quality and consistency of products.
It can help to reduce costs and improve efficiency.
It can help to comply with food safety regulations.

What are the different tests that the DA 7350 NIR and camera instrument can perform?

It can measure the moisture, protein, fat, fiber, starch, and many other parameters in a wide variety of products.
It can also be used to detect the presence of adulterants, such as water and antibiotics.
It can also be used to measure the color and texture of products.

Who is the DA 7350 NIR and camera instrument for?

The DA 7350 NIR and camera instrument is designed for food and agricultural processors, laboratories, and quality control departments.
It is also a good choice for research and development applications.

How much does the DA 7350 NIR and camera instrument cost?

The price of the DA 7350 NIR and camera instrument varies depending on the configuration and options chosen.
You can contact Everest Instruments Pvt. Ltd., for a quote.

Where can I buy the DA 7350 NIR and camera instrument?

The DA 7350 NIR and camera instrument is available through Everest Instruments Pvt. Ltd., as the exclusive authorized distributor.

What are the advantages of using a camera with an NIR instrument?

The camera can be used to collect visual data about the product, such as its color, texture, and shape. This data can be used to further analyze the product and make more informed decisions about its quality and consistency.
The camera can also be used to detect defects in the product, such as cracks or bruises.
