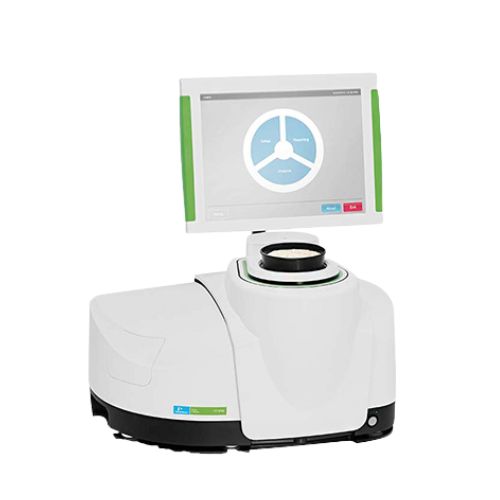

FT 9700 FT - NIR Analysis System

What is FT 9700 FT – NIR Analysis System?

The FT 9700™ FT-NIR Spectrometer is a compact and high-performance full-wavelength-range instrument designed for diverse applications and samples in the food and animal-feed industry. It offers advanced technical design and integrated universal sampling, ensuring reliable measurements without complications. This system is particularly well-suited for food laboratories aiming to efficiently analyze ingredient and finished goods quality to minimize production variations.

What Can You Analyze?

Our advanced instruments are expertly made to help you accurately analyze the properties of Grains, meals, flour, pastes, pellets, extruded products, etc. These parameters include moisture, protein, fat/oil, ash, starch, sugar, speck count, etc

Where Can You Analyze?

At Cattle Feed Plants, Dairy Sector, Powder plants, Coconut Powder Sectors and many more.

Analysis Time

Less than 25 seconds.

Measurement Principle

Fourier transform spectroscopy

Measuring Parameters

Moisture, protein, fat/oil, ash, starch, sugar, etc.

Download Brochure

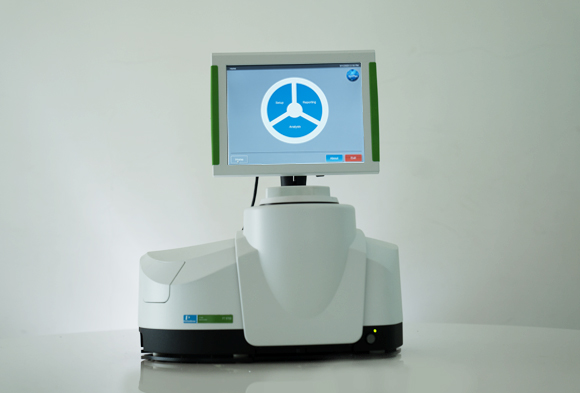

Features

Revolutionary rotary interferometer

By utilizing our Dynascan™ interferometer design with a fixed-mirror pair, our system eliminates the need for dynamic alignment to rectify errors commonly encountered in systems with linear mirror movement. Our field-tested and reliable interferometer technology incorporates a straightforward and noncritical bearing, ensuring consistent performance throughout the instrument's lifespan.

Compact Enclosure

Our OpticsGuard™ technology incorporates a humidity barrier that safeguards the FT 9700 system from environmental factors, enabling its utilization in challenging work environments. Additionally, the long-lasting desiccant ensures optimal instrument uptime, even in the most severe conditions.

Data Accuracy Across Instruments

Our Absolute Virtual Instrument™ technology employs gas-phase spectra standardization to ensure precise calibration of your instruments. It enables more accurate standardization of an instrument's wavenumber and line shape compared to traditional methods. With AVI, data can be reliably transferred between instruments, regardless of their physical location.

Technical Specifications

Included calibrations

Feature	Specification
Wavelength range	700 nm to 2500 nm
Analysis time	<25 seconds
Operating temperature range	5 °C to 40 °C
Detector	Indium gallium arsenide (InGaAs)
Wavelength accuracy	<0.03 nm at 1670 nm
Wavelength repeatability	Better than 0.004 nm at 1390 nm
Dimensions	(H) 550 mm x (W) 460 mm x (D) 410 mm (including touchscreen)
Display	12-in. color touchscreen
Interface	Four USB ports and One Ethernet
Power requirements	240/115 VAC, 1.5 A
Weight	26 kg

Easy Steps For Effortless Results

Solutions For Seamless Business Operations

At Everest Instruments, our services do not end with a sale or a purchase. It is only the beginning of a journey of trust and continuity, ensuring your business operations are safeguarded throughout. Our cutting-edge devices simplify the entire food and beverage industry process. Explore our range of cost-efficient and automated instruments that are compact, lightweight and designed to improve overall product quality.

Download Brochure

Testimonials

Frequently Asked Questions

What are the key features of the FT-9700 Benchtop FT-NIR instrument?

It is a compact, high-performance, full-wavelength-range Fourier transform near-infrared (FT-NIR) spectrometer with a touchscreen interface and low-maintenance design. Ideal for food and agricultural product analysis.
It has a fast measurement time of 30 seconds.
It has a low cost of ownership and minimal downtime.
It is compliant with the latest standards and regulations.

What are the benefits of using the FT-9700 Benchtop FT-NIR instrument?

It can be used to quickly and accurately test a wide range of food and agricultural products.
It can help to improve the quality and consistency of products.
It can help to reduce costs and improve efficiency.
It can help to comply with food safety regulations.

What are the different tests that the FT-9700 Benchtop FT-NIR instrument can perform?

It can measure the moisture, protein, fat, fiber, starch, and many other parameters in a wide variety of food and agricultural products.
It can also be used to detect the presence of adulterants, such as water and antibiotics.

Who is the FT-9700 Benchtop FT-NIR instrument for?

The FT-9700 Benchtop FT-NIR instrument is designed for use by food and agricultural processors, laboratories, and quality control departments.
It is also a good choice for research and development applications.

How much does the FT-9700 Benchtop FT-NIR instrument cost?

The price of the FT-9700 Benchtop FT-NIR instrument varies depending on the configuration and options chosen.
You can contact Everest Instruments Pvt. Ltd. for a quote.

Where can I buy the FT-9700 Benchtop FT-NIR instrument?

The FT-9700 Benchtop FT-NIR instrument is available through Everest Instruments Pvt. Ltd. as the authorized and exclusive distributor.

What is Fourier transform near-infrared (FT-NIR) spectroscopy?

FT-NIR spectroscopy is a non-destructive analytical technique that uses the interaction of infrared light with matter to identify and quantify chemical compounds.
FT-NIR spectroscopy is a versatile technique that can be used to measure a wide range of parameters in a variety of samples.

What are the advantages of using FT-NIR spectroscopy?

FT-NIR spectroscopy is a rapid technique, typically taking only a few seconds to obtain results.
FT-NIR spectroscopy is a non-destructive technique, which means that the sample is not damaged during testing.
FT-NIR spectroscopy is a versatile technique, capable of measuring a wide range of parameters in a variety of samples.
