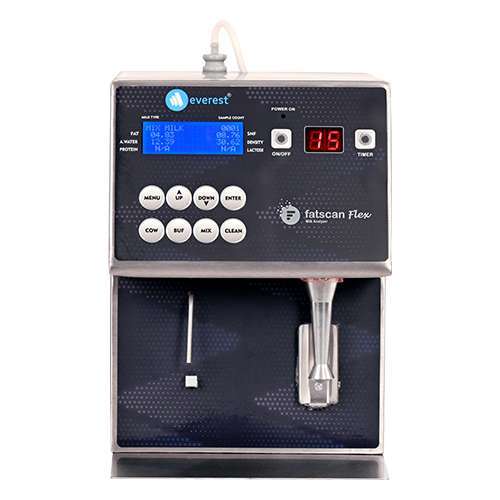

Fatscan Flex – Combination of Milk Analyzer & Stirrer

What is Fatscan Flex?
Fatscan Flex is an advanced milk testing solution designed for accurate analysis of milk properties at collection centers. It combines a Fatscan Milk Analyzer and an Ultrasonic Stirrer in one compact device, along with a powerful battery backup for uninterrupted operation. This system ensures precise measurement of key milk parameters and can also be used for mobile milk collection on vehicles.

Benefits
Fatscan Flex simplifies milk testing by offering fast and reliable analysis of Fat, SNF, Density, Added Water, Protein, and Lactose. Its integrated ultrasonic stirrer removes air bubbles and impurities before testing, ensuring accuracy. With a 9-hour battery backup, it supports continuous operation across multiple shifts without power interruptions.

Where Can You Analyze?
Village Level Collection Centers (VLCC), Bulk Milk Coolers (BMC).

Key Features
Simple Calibration and Smart Cleaning, Real-Time Monitoring, Mobile Application Integration, Data Synchronization with Web Portal, OTP-Based Security, Battery Backup for 9 Hours, Removes Air Bubbles for Accurate Testing.

Download Brochure

Features

Accurate Analysis:

It gives accurate analysis of Fat, SNF, Density, Added Water, Protein, and Lactose in just 39 seconds.

Integrated Components:

Combines Fatscan Milk Analyzer and Ultrasonic Stirrer for efficient operation and has a battery backup of up to 9 hours.

Smart Connectivity:

Supports remote calibration, cleaning & calibration data sync via mobile and web. Operates reliably in dusty and humid environments with AC and DC power options.

Technical Specifications

Included calibrations

Title	Description
	Android Based Data Processing Unit
Processor	Quad Core with 1.66 GHz
Display	8 Inch IPS Display with 1280 X 720 Resolution
Memory	2GB RAM, 16GB Storage Up to 2 Years Data Storage
Keypad	On screen Numeric Pad, External 104 Generic USB Keyboard Support
UART	2
Connectivity	4G/5G Enabled, WIFI , Bluetooth Support
USB	1
Power Supply	12V DC 3A Input
Operating System	AOSP
Printer	Thermal Printer
SD Card	Onboard SD Card Support up to 32 GB for backup and restore
	Ultrasonic Stirrer
Sensor	SS Ball type
Ultrasonic Frequency Timer	20 - 25 K Hz (Variable) 1 Second To 99 Seconds (User Selection)
Environment	Suitable for dusty/humid village environment, operating temperature - 5 to 50 Degree C
Operating Voltage	230 Volts + /-10% AC, 50Hz and 12 Volts DC
	Fatscan Milk Analyzer
UART/Serial Ports	1 UART
USB Interface	1 HOST
Display	20 X 4 Character LCD
Keypad	8 Keys
Power Supply	AC Power Supply (230 Volt / 50Hz) DC Power Supply (12 Volt)
USB Firmware Upgrade	Firmware Upgrade via USB Pen Drive Cleaning & Calibration data synchronization with Mobile
Data Sync	application and Web Portal. Remote Calibration & Configuration
Measuring Parameters	FAT, SNF, Added Water, Density, Protein and Lactose*
Measurement Time	29 Seconds

Easy Steps For Effortless Results

An Electronic milk analyzer with adulteration screening

Fatscan Flex is a highly recommended instrument for accurate analysis of milk properties such as Fat, SNF, Density, Added Water, Protein and Lactose. It is combination of Fatscan Milk Analyzer and Ultrasonic Stirrer along with battery backup. Ultrasonic Stirrer removes air bubbles or impurities from milk sample before it is analysed, while Milk analyzer measures various properties of Milk Sample. It provides battery backup of 9 hours.
